Roller Shutter Limit Switch & Push-Button Control Replacement in Singapore
Project Overview

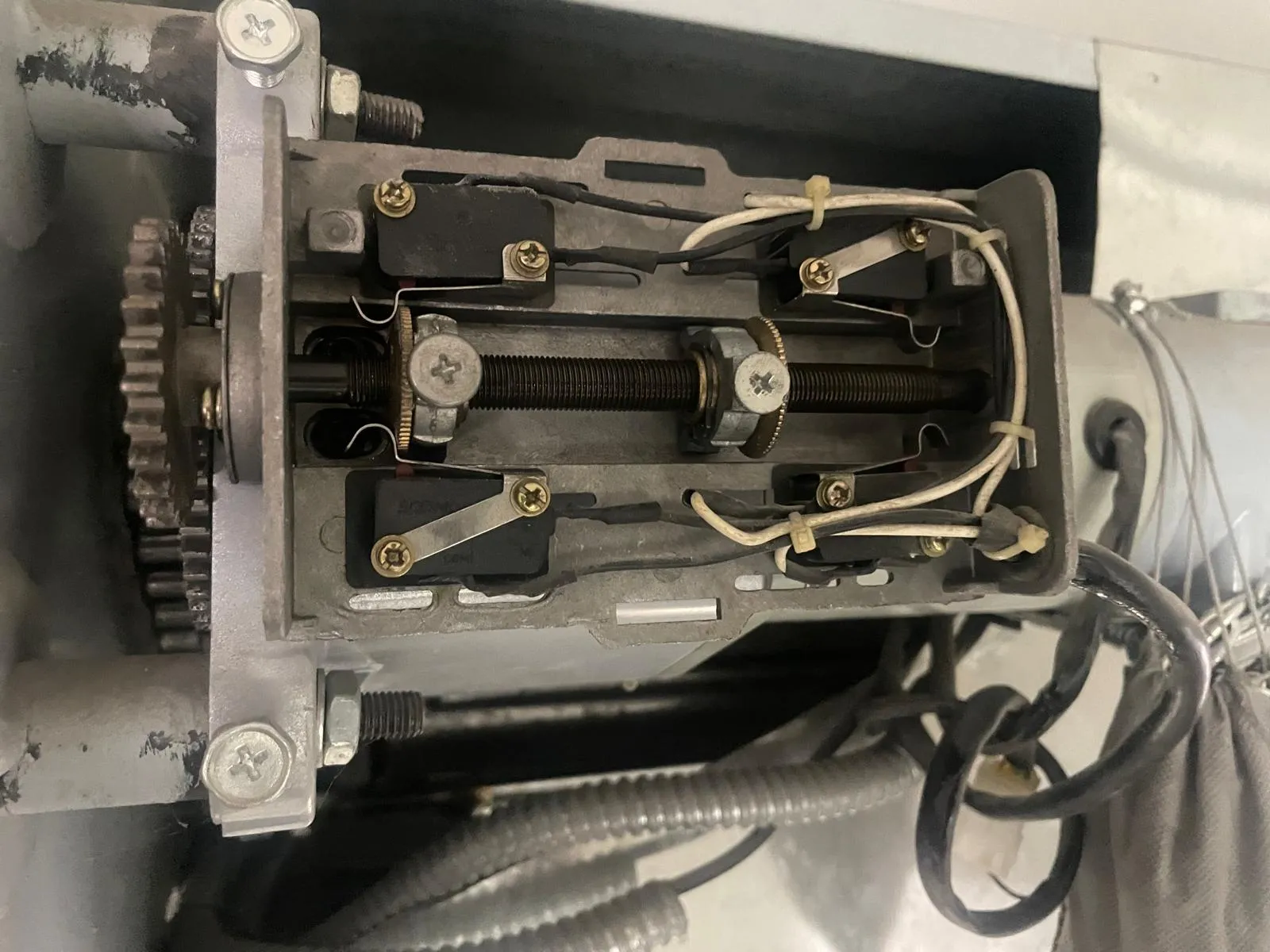

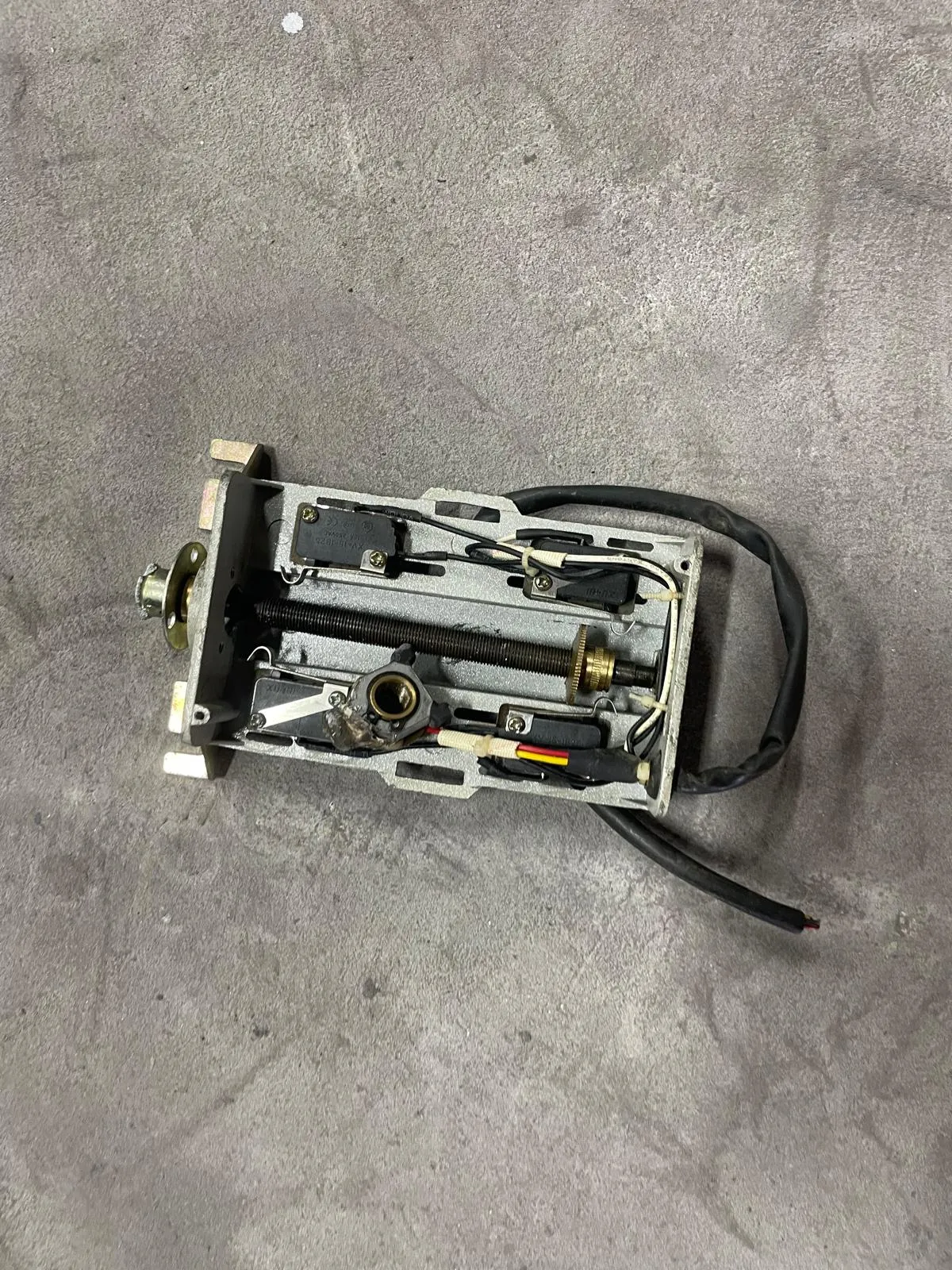

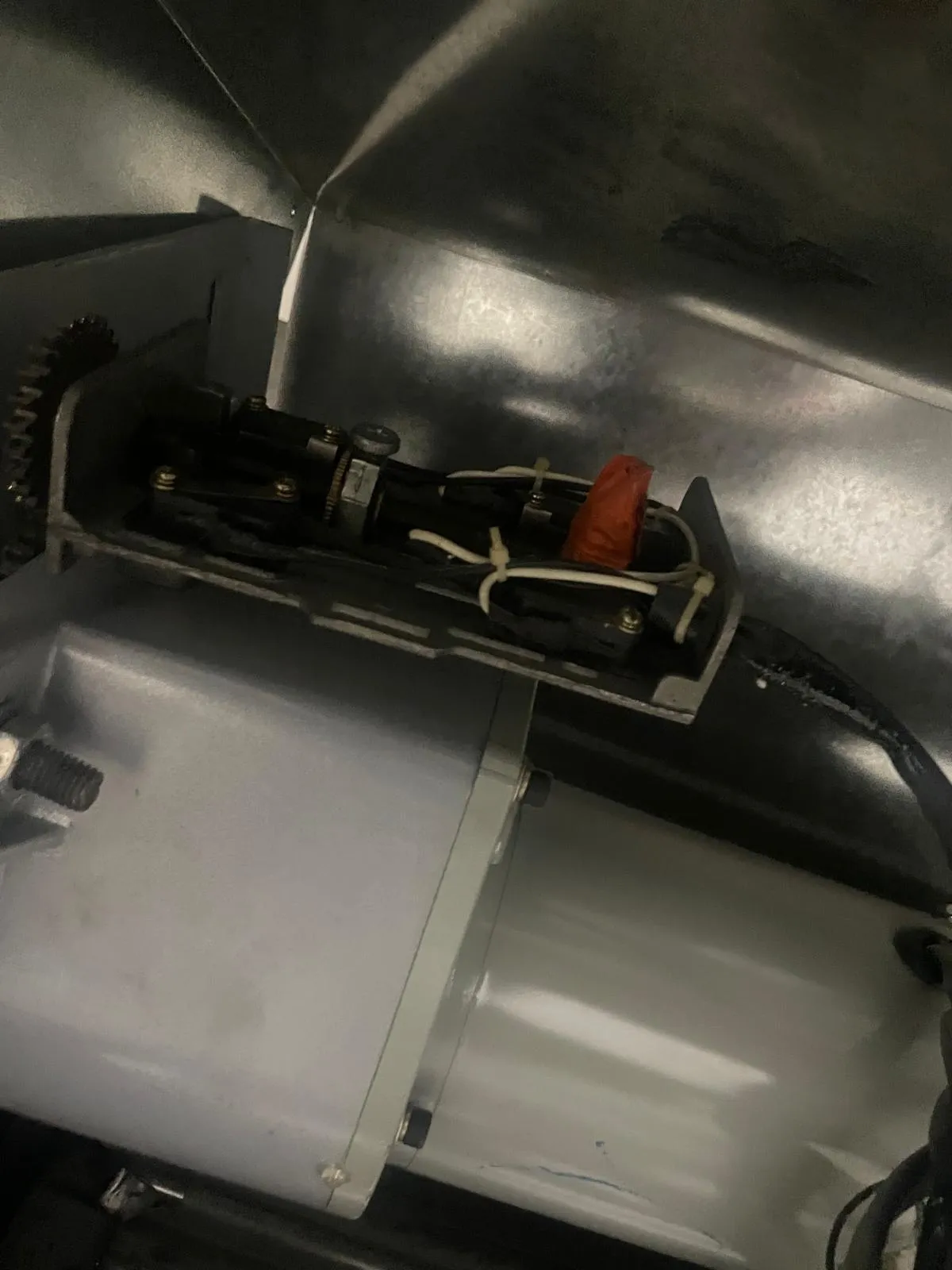

Technical Project Overview: Addressing a dual electrical control failure within a commercial automated door system. The facility’s roller shutter experienced critical over-travel issues due to a degraded electro-mechanical limit switch, failing to halt the motor at designated thresholds. Concurrently, the primary wall-mounted push-button console exhibited severe contact wear, causing intermittent signal transmission and delayed mechanical response. Technical Execution & System Upgrades: Our electrical engineering team deployed to execute a targeted roller shutter electrical control repair. We safely isolated the low-voltage circuitry to extract the compromised control components without disrupting the primary drive unit. Key technical interventions included: Limit Switch Replacement & Calibration: Extraction of the faulty limit module and installation of a precision micro-switch assembly. We meticulously phase-aligned the upper and lower travel limits, ensuring the heavy-duty curtain stops exactly at the required structural thresholds to prevent motor over-torque. Push-Button Console Upgrade: Complete replacement of the degraded control station with an industrial-grade, 3-position (Up/Stop/Down) push-button console engineered for high-frequency daily operation. Control Matrix Rewiring: Re-establishing the communication circuit between the new push-button console and the motor logic board to guarantee instantaneous, zero-latency electro-mechanical response. This precision electrical upgrade eliminates the risk of structural crashing, protects the drive unit from thermal overload, and restores reliable, immediate access control to the commercial premises. Require precision electrical control repairs? For limit switch recalibration and control station upgrades, contact our specialists for expert commercial roller shutter repair in Singapore.
